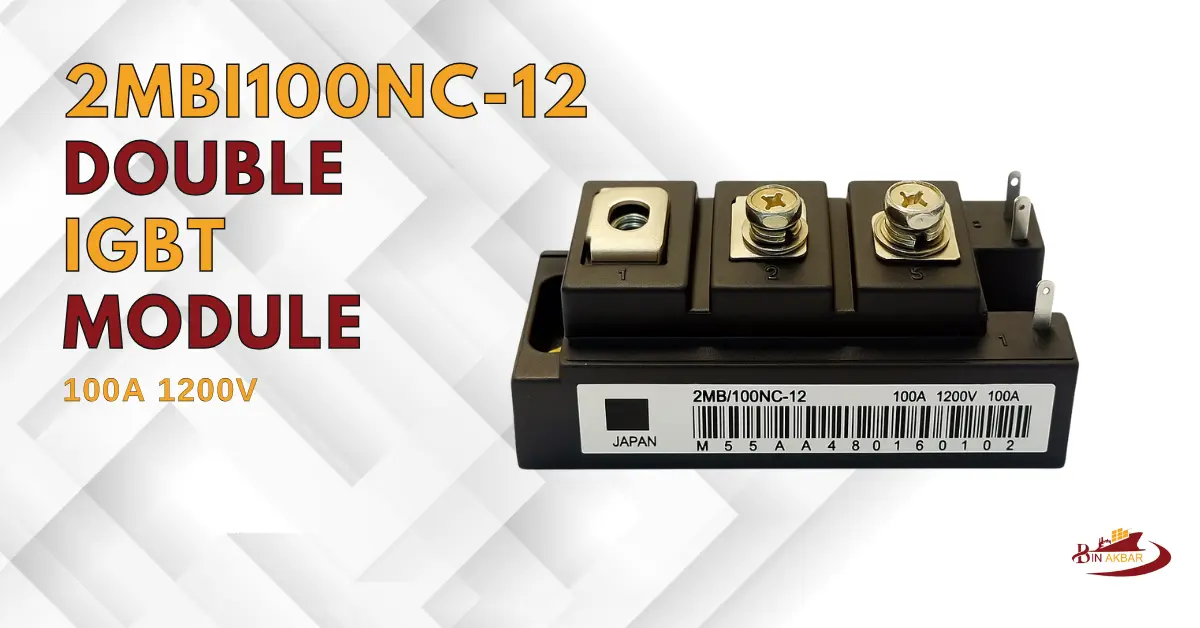

2MBI100NC-12 Double IGBT Module – 100A 1200V

Introduction to the 2MBI100NC-12 IGBT Module

A high performing dual IGBT module, the 2MBI100NC-12 by Fuji Electric can manage 100A at 1200V, and is a major player in the power electronics market, giving controllability of high power in applications such as motor drives, inverters, and power supplies. So what is it that makes this particular module special in a sea of IGBTs? Let’s take it apart in simple English.

Understanding IGBT Technology

How IGBT Works

Imagine an IGBT (Insulated Gate Bipolar Transistor) as a creature with the best of both worlds: the control of a MOSFET and the power handling capabilities of a BJT. It behaves like a digital switch, turning on and off enormous electrical loads with nothing more than a small gate signal.

IGBT vs. MOSFET

However, MOSFETs are superb for high frequency; while IGBTs (insulated gate bipolar transistors) can handle higher voltage and current, which makes them popular for industrial purposes.

Why Choose an IGBT Module?

• Lower conduction losses at high currents
• Easier thermal management
• Integrated protection features
• More reliable over time

Buy 2MBI100NC-12 Double IGBT Module – 100A 1200V online

If you would like to get a quote on the 2MBI100NC-12 Double IGBT Module for your next project, order this product from us and we’ll assist you. This strong & dependable product is sure to impress your guests for years to come.The T-4 Driver for shafts works well with any contemporary room and is available in 12 stacks. We included a trusted link for you to buy real and high-quality below, so you don’t need to worry about that. Don’t let this important module pass you by—see the link below to get yours on order now!

👉 click here

Key Specifications of 2MBI100NC-12

Let’s take a quick glance at what this beast offers:

• Collector-Emitter Voltage (V_CES): 1200V
• Collector Current (I_C): 100A continuous
• Configuration: Dual IGBT in a single package
• Isolation Voltage: 2500V RMS
• Switching Frequency: Up to 20kHz
• Package Type: Industrial standard module

These specs allow it to comfortably handle power-hungry applications.

Design and Construction

The dual IGBT setup inside this module isn’t just for show. It allows for half-bridge configurations, essential for inverter applications. Fuji Electric’s robust compact module design ensures it fits easily in standard systems, saving board space and simplifying wiring.

Gate Drive Requirements

You’ll need an appropriate gate driver circuit. Typically, a gate voltage of ±15V is recommended for optimal switching.

Applications of the 2MBI100NC-12

Here’s where this IGBT truly shines:

Industrial Motor Drives

Reliable control of heavy-duty motors, with minimal heat losses and high-speed switching.

Inverters and UPS

Ensures stable operation during voltage fluctuations and load changes.

Renewable Energy Systems

Perfect for solar inverters and wind turbine converters. Its high voltage handling makes it ideal for grid-tied and off-grid systems.
